Davis VF Shuttles

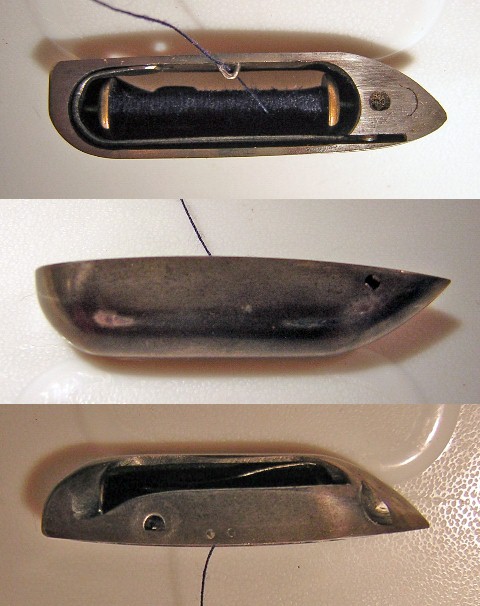

HAVF shuttle

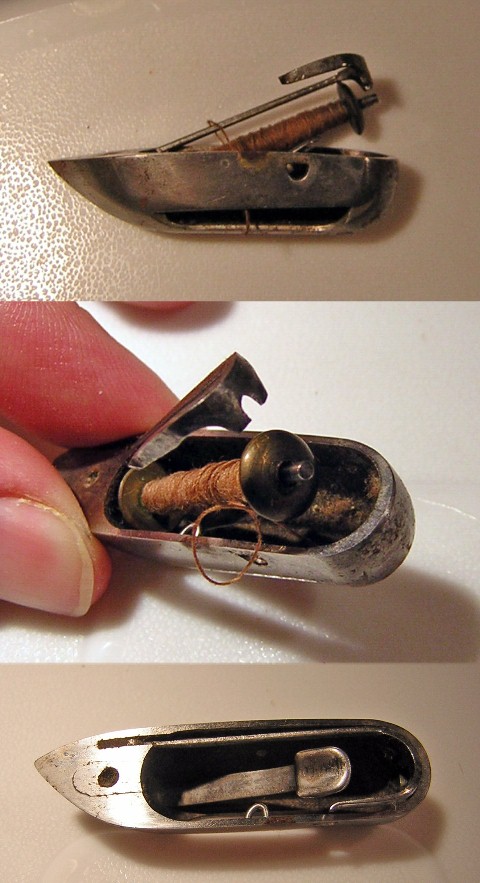

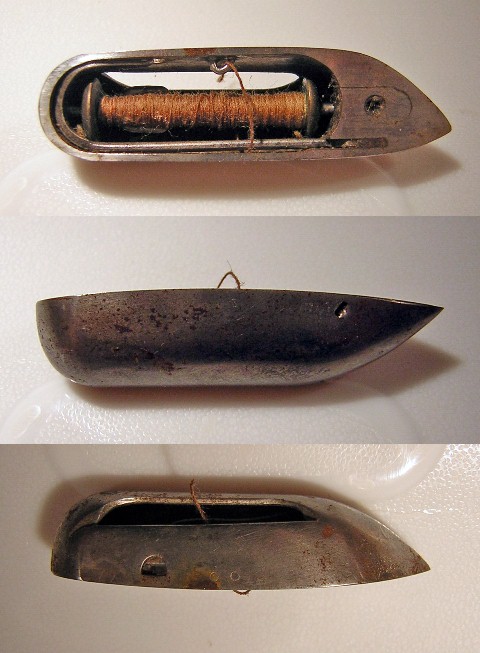

LAVF Shuttle

Photos courtesy Kelly in PA
SN 151744

Shuttle length = 1.85"

Bobbin length = 1.30"
Bobbin inside width = .95"

"Davis short" in catalog below?





























HAVF shuttle


HAVF

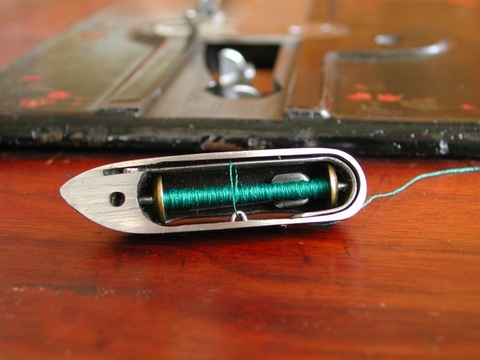

VF1 boat shuttle (early)

Photo Courtesy of Donna in Fresno
SN 428110


VF2 shuttle

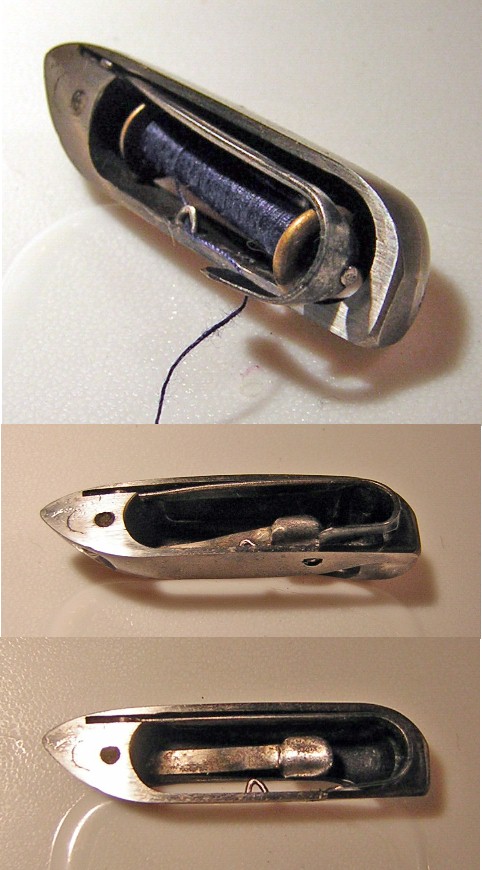

VF1 Boat shuttle (late)

Photos courtesy of Kelly in PA
SN 535379

Shuttle length = 1.95"

Bobbin length = 1.40"
Bobbin inside length = 1.05"





Halfway between:

"Davis old style, low arm, no notch"
and
"Davis high arm, notched boat type"

in catalog below (has notch, but does not have rounded end):



















VF2 shuttle


NVF shuttle

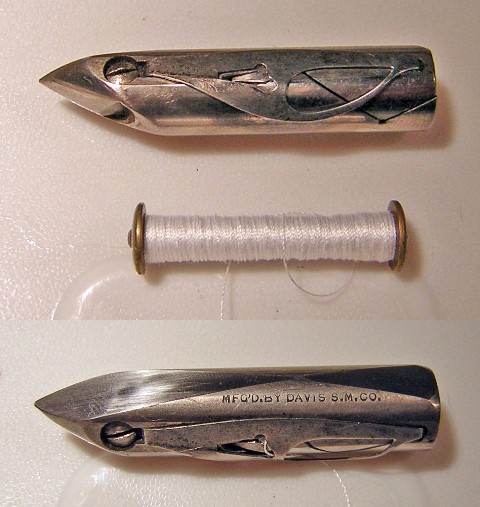

NVF "Davis Long" bullet shuttle

Photo courtesy of Kelly in PA
SN 3775748

Shuttle length = 2.08"

Bobbin length = 1.42"
Bobbin inside length = 1.25"






















MasterCatalog

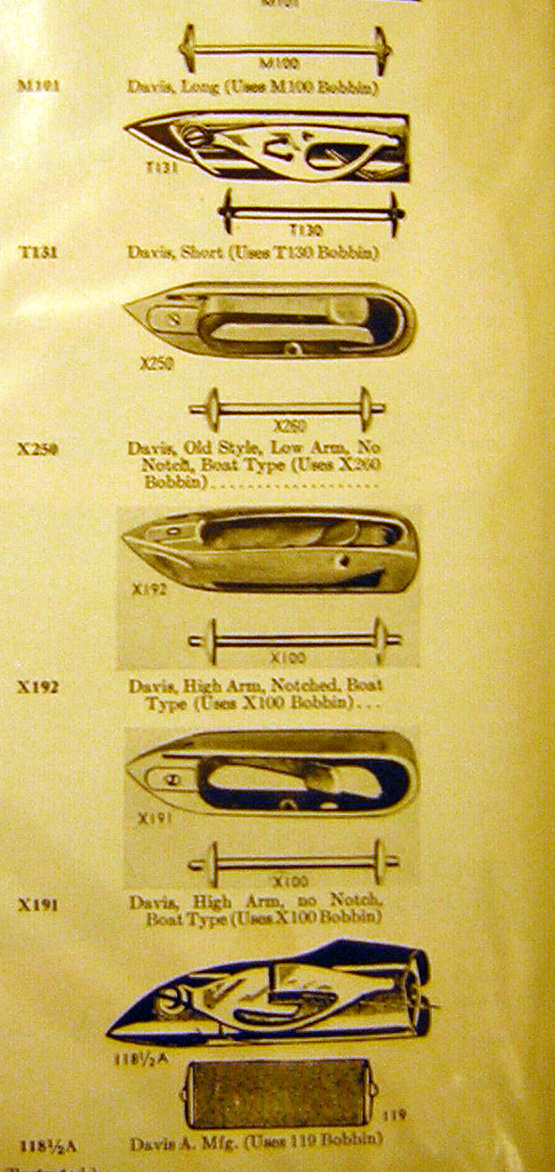

Davis shuttles shown in Free Master Catalog
